1Before Installation

To simplify the process of selecting compatible hard disks, ASUSTOR has tested hundreds of popular models and has listed them here:

Go to Compatibility

2Hardware Installation

Get a Phillips head screwdriver ready and follow the Quick Install Guide to complete the installation. You may download the guide

Quick Installation Guide

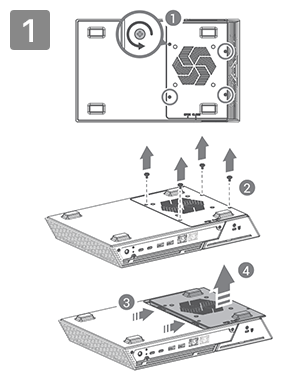

Slide the cover away from the NAS and lift upon release.

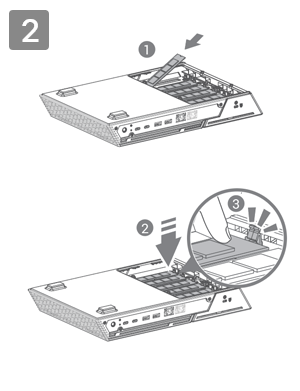

Once inserted, push the SSD down so that it is flush with the motherboard while pushing SSD locking lever open to secure the SSD. Once SSD is fully flush, release lever to secure SSD. If heatsinks are needed, they should be installed now.

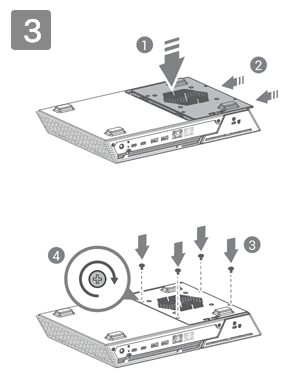

Return cover back to its original position by sliding it towards the NAS.

3Power and Network

    After hard disks have been installed, please confirm that:

  1. You have connected the power and network cables
  2. Your computer and NAS are both connected to the same network
  3. The NAS network LED indicator is lit
Quick Installation Guide
LED Indicator Color Description State
Power

Blue
Orange

Steadily lit
Flashing		 Power on
Waking from sleep mode (S3)
System Status Green
Blue		 Flashing
Steadily lit		 Powering on
System ready
Network Blue Steadily lit Network port connected
Hard Disk Green Steadily lit
Flashing		 Hard disk ready
Data access in progress

4Let's get started

1. Install the Control Center utility on your PC or Mac to find and configure your NAS within the local area network.


Download Asustor Control Center

2. Alternatively, you can also use the AiMaster mobile app to find and configure your NAS.

5Get to know your ASUSTOR

Welcome to your new NAS. You will find the Online Help icon on the ADM desktop, which will introduce you to the basic functions of the NAS. To learn more about ASUSTOR NAS features, please click

ASUSTOR College FAQ

6The ASUSTOR Community

Join the conversation, share tips, news and ideas with other ASUSTOR users from around the world

Go to Forum

7Customer Care

At ASUSTOR we value each and every one of our customers and are devoted to providing you with the best customer service around. Please feel free to submit any questions or concerns about our products here.

Go to Online Support Form
